MJ-32|MJ-32|ABS Material Type

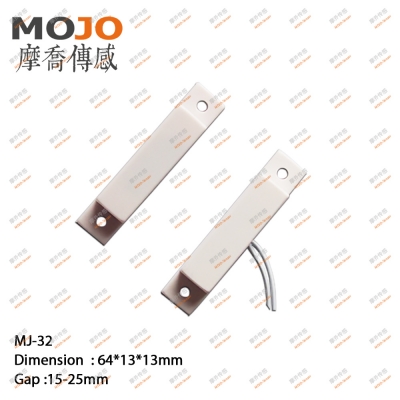

Model: MJ-32
Shipping Weight: 0.01kg
Units in Stock: 90000

MJ-32

Details
Reviews
Size&color
Tags
FAQ

Comfortable with: wooden doors and Windows Squared shell color: white, brown Squared to recognize: CCC, CE, FCC, ROHS Squared shell size: the line:64*13*13mm
SMT squared installation: screw Squared connection mode: screw thread connection Squared package installs: 10 sets of/package, 500 sets/carton

Electrical characteristic

`Order specifications`	`Output signal`	`Shell material`	`Working distance`	`Maximum current/voltage/power/initial resistance`	`Min order quantity`
`NO-FPABS-1525`	`NO`	`FPABS`	`15-25`	`0.5A/100VDC/10W/200mΩ`	`1000`
`NO-ABS-1525`	`NO`	`ABS`	`15-25`	`0.5A/100VDC/10W/200mΩ`	`0`
`NC-ABS-1525`	`NC`	`ABS`	`15-25`	`0.2A/30VDC/3W/200mΩ`	`500`
`COM-ABS-1525`	`NC and NO`	`ABS`	`15-25`	`0.2A/30VDC/3W/200mΩ`	`500`
