MJ-33H

MJ-33H
Product Name

MJ-33H

  • Model: MJ-33H
  • Shipping Weight: 0.01kg
  • Units in Stock: 90000

Price:   $1.80

-+Min:  5
0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

Comfortable with: wooden/aluminum alloy doors and Windows
Squared shell color: white, brown is available for bulk orders
Squared to recognize: CCC, CE, FCC, ROHS

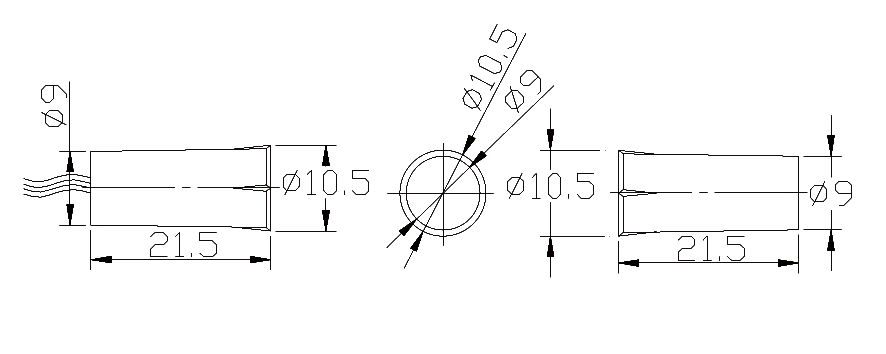

Squared shell size: 10.5 * L21.5 Φ
Squared installation type: Φ 10 bit drilling installation
Squared connection mode: 350 mm is the 1007/22 awg wire connection
Squared package to: 20 sets/bag, 1400 sets/carton





Electrical characteristic

Order specifications

Output signal

Shell material

Working distance

Maximum current/voltage/power/initial resistance

Min order quantity

NO-ABS-2025

NO

FPABS

20-25

0.5A/100VDC/10W/200mΩ

1000

NO-ABS-2025

NO

ABS

20-25

0.5A/100VDC/10W/200mΩ

0

NC-ABS-2025

NC

ABS

20-25

0.2A/30VDC/3W/200mΩ

500

COM-ABS-2025

NC and NO

ABS

20-25

0.2A/30VDC/3W/200mΩ

500



           The order only for the red color type,other type pls contact us to inquiry the price .
