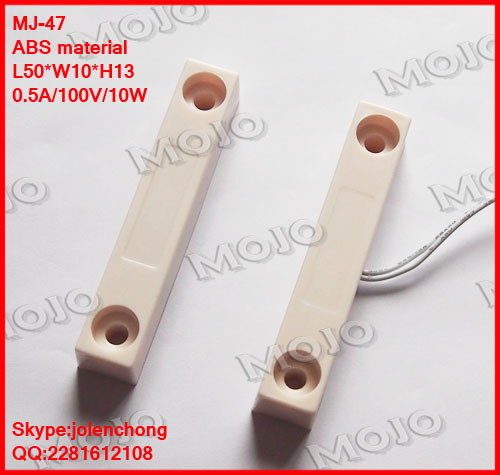

MJ-47|MJ-47|ABS Material Type

Model: MJ-47
Shipping Weight: 0.05kg
Units in Stock: 90000

MJ-47

Details
Reviews
Size&color
Tags
FAQ

Comfortable with: wooden doors and Windows
Squared shell color: white, brown
Squared to recognize: CCC, CE, FCC, ROHS
Squared shell size: 51 * 10 * 13 mm
SMT squared installation: screw
Squared wire specifications: 350 mm is the 1007/22 awg
Squared package installs: 10 sets of/package, 600 sets/carton

Electrical characteristic

`Order specifications`	`Output signal`	`Shell material`	`Working distance`	`Maximum current/voltage/power/initial resistance`	`Min order quantity`
`NO-FPABS-2025`	`NO`	`FPABS`	`20-25`	`0.5A/100VDC/10W/200mΩ`	`1000`
`NO-ABS-2025`	`NO`	`ABS`	`20-25`	`0.5A/100VDC/10W/200mΩ`	`0`
`NC-ABS-1525`	`NC`	`ABS`	`15-25`	`0.2A/30VDC/3W/200mΩ`	`500`
