MJ-A68-1

MJ-A68-1
Product Name

MJ-A68-1

  • Model: MJ-A68-1
  • Shipping Weight: 0.1kg
  • Units in Stock: 89995

Price:   $3.50

-+Min:  5
0 Reviews
  • Details
  • Reviews
  • Size&color
  • Tags
  • FAQ

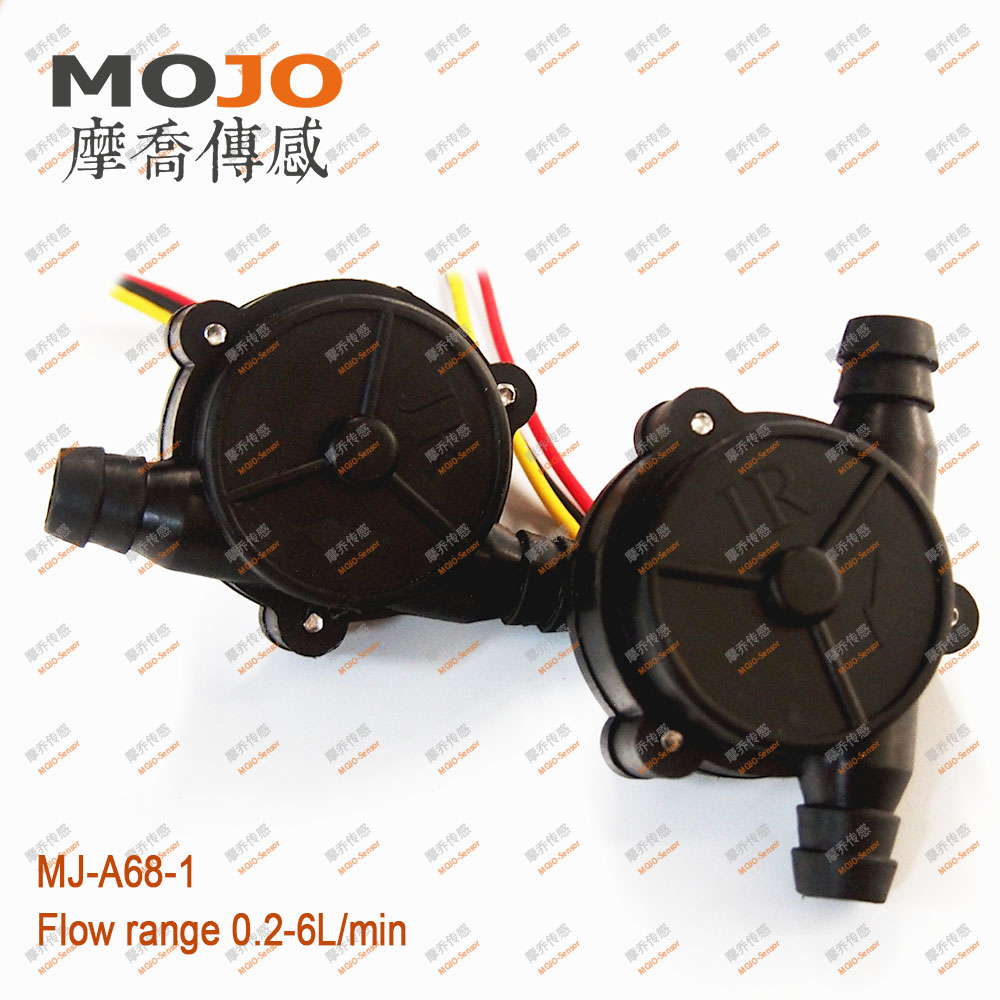

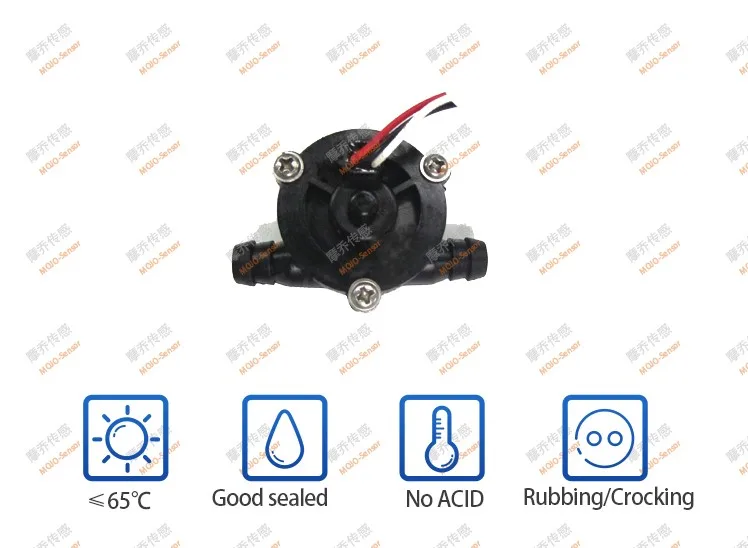

MOJO SENSOR

Hall Flow Sensor

Using Area

Widely used in drinking fountains, water purifiers, water sales system,

pharmaceutical machinery, etc

Electrical specification



NO.

Examine Items

Standard order

1

Apparent

clear product logo accuracy and comply with the order

2

Withstand Water Pressure

≤0.35MPa

3

Working Voltage Rating

DC5～24V

4

Insulating resistance

>100MΩ

5

Precision

﹝In 10～132LH﹞

6

Flow pulse character

F=(18Q)±5%

7

Pulse duty cycle

50%±10%

8

high export pulse level

>DC 4.7V(Input voltage DC 5V)

9

low export pulse level

<DC 0.5V(Input voltage DC 5V)
Attention:

1.When magnetic materials or to flow sensor a magnetic force materials near water flow sensor,its characteristics may change.


2.In order to avoid particles, sundry into the flow sensor, in the inlet must install screen pack.



3.In the use of the water flow sensor before please read the parameters that if there are stillquestions please to our factory technical personnel consultation.


4.The water flow sensor installation use environment to avoid strong vibration and shaking place,in order to avoid water flow seneor produce false action.
