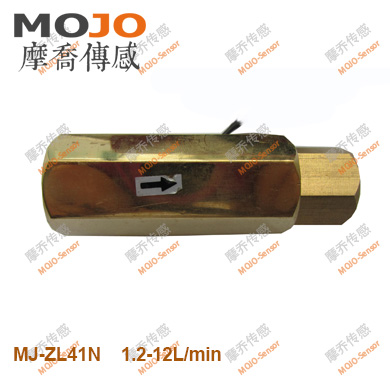

MJ-ZL41N G1/2''

Name

MJ-ZL41N

Product Features

Vertical installation, float up and down by the activities drive the permanent magnets with dry reed pipe the output signal switch

Material

Copper/ Brass

LWH(MM)

22*62

ID

G1/4"

Startup flow rate

1.2L/min

Maximum stream flow

12L/min

Operating pressure

0.005-1.0MPA

Max pressure

1.5MPA

Media

WATER

Operating temperature

≤60℃

Installation Method

Product direction arrow is installed vertically into the water, the water from the bottom up push to open magnetic float

Switch parameters

temperature range 70W

Unit

Features

maximum voltage

DC220/AC250

V

  Switch for the imported dry reed pipe

breakdown voltage

DC400

V

Small flow start, big flow work

Max current

1

A

  Start flow rate can be adjusted

load current

1.5

Max A

 No standby power consumption

contact resistance

0.2

MaxΩ

One-way control, prevent backwater

Insulation Resistance

10⁸

MinΩ

Industrial control and water treatment of good assistant

temperature range

-40--120

℃

Other specifications and wiring length can be made to order

NOTE：

1，When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.

2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.

3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.

4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.

5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
